Classic™ Steel
Classic short or long panel steel garage doors with or without insulation.
Available in a wide range of looks and colors, Clopay’s Classic™ Collection steel doors complement every home so there’s no sacrificing style for strength, durability and comfort.
Overview
Clopay’s® CLASSIC™ collection provides the traditional raised-panel style garage door in a wide range of construction and design options, allowing you to take the time-tested, classic garage door look and make it your own. Our CLASSIC™ garage doors can complement any home with the ability for homeowners to customize door sizes and choose from a variety of decorative top window inserts and specialty glass for natural light and privacy. These durable steel garage doors are available in 3, 2 or 1-layer construction with multiple insulation options.
WHAT IS A RAISED PANEL GARAGE DOOR?
Raised panel garage door styles are what most people imagine when they think of a traditional garage door — a showcase of long and short panels, windows and numerous color options. Raised panel garage doors will allow you to draw attention to your home’s architecture with a focus on depth and symmetrical patterns.
CONSTRUCTION OVERVIEW
- Short and long panel steel garage doors.
- Durable steel garage doors available in 3, 2 or 1-layer construction.
- Insulation options include 2″ or 1-3/8″ Intellicore® polyurethane, 2″ or 1-3/8″ polystyrene or 1-5/16″ vinyl backed polystyrene insulation available. Insulated door R-values from 6.3 to 18.4.
- The steel skins are protected by the use of a tough, layered coating system, which includes a hot-dipped galvanized layer and baked-on primer and top coat.
- WINDCODE® door reinforcement product available for high wind load applications.
DESIGN OVERVIEW
- Available in short and long raised panel design options. The three-layer Premium doors have a defined Elegant raised panel design.
- 14 factory finish paint colors available, including Standard White, Mocha Brown, Ultra-Grain® Classic Cherry Finish and more.
- A wide variety of window options are available, including decorative, architectural, and double-top window sections.
- Multiple glass options available including acrylic, insulated, frosted, seeded, rain and obscure.
- Window grilles are removable for easy cleaning.
Calculated door section R-value is in accordance with DASMA TDS-163.
ENVIRONMENTAL ASSURANCE
Clopay doors are compliant with environmental laws and regulations. Clopay doors do not contain HFCs. All Clopay doors are compliant with:
- California SB 1013
- Washington HB 1112 – Hydrofluorocarbon Greenhouse Gas Emissions
- Canadian regulations amending the ozone-depleting substances and halocarbon alternatives regulations
- New Jersey A-5583/S-3919 – Greenhouse Gas Bill
LIFTMASTER® ELITE SERIES™
Clopay Recommends LiftMaster® Elite Series® openers for these garage doors. These openers have a range of features that truly make lives easier.
Design Options
DOOR DESIGNS
TOP SECTIONS
SOLID TOP SECTIONS
DECORATIVE INSERT SERIES WINDOWS
ARCHITECTURAL SERIES WINDOWS
DOUBLE TOP SECTIONS
*Acrylic window designs.
**Available only on 2″ thick 3-Layer doors only.
***Sunset Windows not available on Ultra-Grain® doors.
SPECIALTY GLASS OPTIONS
COLORS
STANDARD COLORS
PREMIUM COLORS

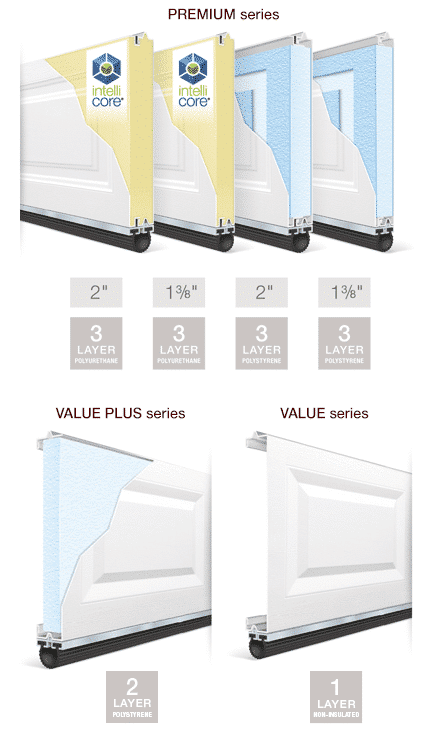

Construction
- Available in 3-layer, 2-layer or 1-layer construction.
- 2″ or 1-3/8″ Intellicore® polyurethane, 2″ or 1-3/8″ polystyrene or 1-5/16″ vinyl backed polystyrene insulation available. Insulated door R-values from 6.3 to 18.4.
- Replaceable vinyl bottom weather seal in rust free aluminum retainer helps protect against the elements.
- Grilles are removable for easy cleaning.
- Patented Safe-T-Bracket® – Prevents serious injury that could occur if the bottom bracket were removed with the garage door closed and under tension.
- Rust-Prevention System – Steel skins are protected through a tough, layered coating system, including a hot-dipped galvanized layer, a protective metal oxide pretreatment and a baked on primer and top coat.
GREATER
ENERGY EFFICIENCY
Thermal break separates the interior from the exterior skin to improve energy efficiency and comfort.
Rust-Prevention System
System
Steel skins are protected through a tough, layered coating system, including a hot-dipped galvanized layer, a protective metal oxide pretreatment, and a baked-on primer and top coat.
Door sample shown in Standard White.
Product complies with 2015 IECC air infiltration requirement of 0.40 cfm/ft2 or less (IECC, Section C402.5.2)
Warmer. Quieter. Stronger.
Garage doors featuring Intellicore® insulation technology represent the ultimate smart choice for homeowners. Clopay’s Intellicore® is a proprietary polyurethane foam that is injected into a garage door, expanding to fill the entire structure. The result is a door with incredible strength, energy efficiency and durability.
Video
Overview. Listen to Gary Sullivan talk about the Classic steel doors, which features Clopay’s exclusive Intellicore® insulation technology for a door with incredible strength, energy efficiency and durability.
